American IPG Type Fiber Laser Cutting Machine Power voltage 220V±5%
Product introduction:
American IPG type fiber laser, with its excellent cutting performance of a large number of users worldwide recognition; Swiss RayToolAG company BT240 laser cutting head in authority has been in a leading brand in the field of laser cutting, its reliable cutting processing capacity is unparalleled;Shanghai BaiChu CNC system, a high degree of flexibility, general user interface, the implementation of the consistent quality and integrated remote maintenance and diagnostic function, has a friendly interface, easy to operate, good controlling, the accuracy, practicability and perfect can be diagnostic, is considered to be one of the most reliable laser cutting system existing.
High strength, high rigidity box type welding machine frame, high precision linear guide and rack driving and bilateral drive system to strengthen the accuracy and stability of the machine running ; Integrally cast aluminum beam, strong rigidity, light weight, small inertia, fast response, machine acceleration of 0.6 G, empty moving speed of 72 m/s, improving the processing ability of the equipment. Equipment machining accuracy for a long time to keep within + / - 0.05 mm.
Independent, professional smoke dust, smoke dust effect is good, good working environment of the factory.
Main features:
1. Gantry double drive structure, smooth and reliable movement;
2. Independent research and development design, the manufacture of machine tool bed, special processing technology, machine tool precision, stable and reliable, long life;
3. Precision gear rack drive, with high response and high precision servo motor;
4. The international first-class quality of fiber laser, industrial application for many years, long service life, maintenance free, stable and reliable;
Basic configration:
| No. | Description | Brand | Origin |
| 1 | Machine main body | Yahong | China |
| 2 | CNC operationg carbinet | Yahong | China |
| 3 | Smoke dust sucking structure | Yahong | China |
| 4 | air conditioning cabinet | Yahong | China |
| 5 | Fiber Laser | IPG-1000W | America |
| 6 | optical module | Import | America |
| 7 | Conductive fiber | Import | America |
| 8 | QBH connector | Import | America |
| 9 | Laser cutting head | RayToolAG | Swiss |
| 10 | laser chiller | Han’s | China |
| 11 | CNC system | Baichu | China |
| 12 | Capacitive THC | Baichu | China |
| 13 | Servo motor | Fuji | Japan |
| 14 | IPC | ADVANTECH | Taiwan |
| 15 | Gear rack | YYC/ Level 6 precision | Taiwan |
| 16 | Linear Guide | Bosch Rexroth | Germany |
| 17 | Precision reducer | Shimpo/3 Arc-min | Japan |
| 18 | Proportional valve | SMC | Japan |
| 19 | high-pressure valve | ARK | Korea |
| 20 | Electronic pieces | Schneider | France |
| 21 | Solenoid valve | SMC | Japan |
| 22 | Air cylinder | AirTAC | Korea |
| 23 | Air Conditioner | WINHENG | China |
| 24 | Cutting software | Baichu | China |
| 25 | Composing software | SmartNest | China |
Technical indicators:
1. Machine tool technology parameters
| Items | Technical parameters |
| Max cutting size (mm) | 3000×1500 |
| The workpiece maximum height (mm) | 90 |
| Effective travel | X axle(mm) | 3050 |
| Y axle (mm) | 1550 |
| Z axle (mm) | 100 |
| PositionaI accuracy | X axle (mm/m) | ±0.05/1000 |
| Y axle (mm/m) | ±0.05/1000 |
| Z axle (mm/m) | ±0.01/100 |
| repeated positioning accuracy | X axle (mm) | ±0.01 |
| Y axle (mm) | ±0.01 |
| Z axle (mm) | ±0.005 |
| Rapid positioning speed | X axle (m/min) | 72 |
| Y axle (m/min) | 72 |
| Z axle (m/min) | 15 |
| Max Cutting Speed (m/min) | 15 |
| IP Grade | IP54 |
| Total weight (T) | 4.35 |
| Machine Power Consumption (Kwh) | 4.8 |
| boundary dimension L×W×H(mm) | 4216×2165×1450 |
2. Laser & process parameters
| Items | Technical parameters |
| working mode | Continuous/modulation |
| Laser power(W) | 500 |
| Laser wavelength (nm) | 1070 |
| The maximum modulation frequency (KHz) | 5 |
| laser mode | Multi mode |
| Optical quality (M2) | 2.2mm*mrad |
| Power adjust range (%) | 5-100 |
| Fiber Length (m) | 10m |
| Type of cooling | water-cooling |
| Operating temperature (℃) | 10-40 |
| Long-term stability (24h) | ﹤2% |
| Laser life(h) | 100000 |
| maximum cutting thickness | MS (mm) | 6 |
| SS(mm) | 2 |
| cutting speed (1mm MS) | 15m/min |
| Focal length F(mm) | 150 |
| Adjustable focus range (mm) | 0-10 |
| Overall Power Consumption (Kwh) | 4 |
Applicable materials:
Professional used to cut thin sheet metal, in a variety of high-quality cutting 0.5 ~ 10mm carbon steel sheet, 0.5 ~ 4mm stainless steel plate, can also be cutting aluminum alloy plate, galvanized sheet, electrolytic plate, silicon steel, titanium alloy, aluminium zinc plate and other metal materials.

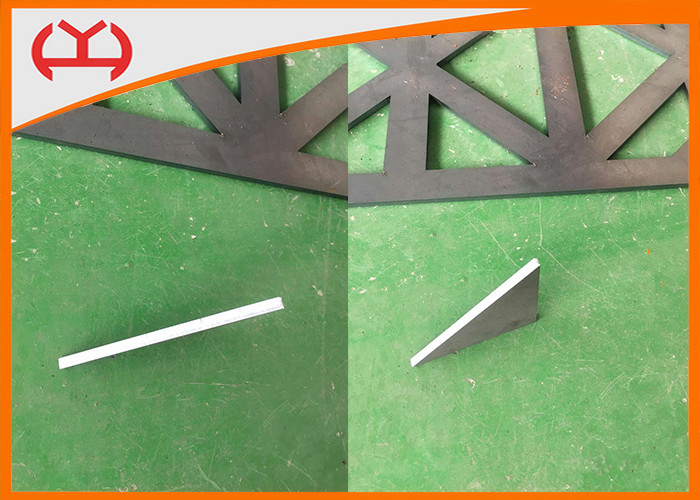

Cutting Sample:
