Cutting Area 1500 * 3000 mm Table Plasma Cutter For Metal Sheet Cutting
Description:
1. Beam with light structural design, the structure has good rigidity, light weight, exercise inertia and low cost.
2. It is integrated with high speed, high precision, and miniaturization, and miniaturization, and the structure of the machine is made from special industrial aluminum profile, which is separated from the cutting table.
3. With the feature of easy installation, human-computer interface, easy operation, stable work, elegant appearance, they can be used to cut almost all kinds of metal plate automatically.
Cutting Material:
All kinds of metal materials such as steel, copper, aluminum and stainless steel can be processed. Applies to iron plate, aluminum plate, galvanized sheet, and so on like the sheet metal.
Technical Parameters for Table CNC Cutting Machine:
| 1 | Cutting shape | Steel plate with any plane shapes fromed by straight lines and arcs |
| 2 | LCD Display Dimension | 7.0 Inches |
| 3 | Effective Cutting Size | 1500*3000mm |
| 4 | Railway Size | 2000*3500mm |
| 5 | Plasma Cutting Thickness | 0.5--20mm ( Depends on plasma power source capacity) |
| 6 | Flame Cutting Thickness | 5--200mm |
| 7 | Cutting Speed(Stepper Motor) | 0-8000mm per minute |
| 8 | Height Control | Arc voltage height control (THC) |
| 9 | Drive Mode | Bilateral drive |
| | Cutting Mode | flame and plasma |
| 12 | Ignition device | Auto ignition device |
| 13 | File transmission | USB transmission |
| 14 | Gas Pressure | Max. 0.1Mpa |
| 15 | Oxygen Pressure | Max.0.7Mpa |
| 16 | Cutting Gas | Flame: Oxygen+ Acetylene/ Propane/ Coal gas Plasma :air |
| 17 | Software | FastCAM Standard (support Auto CAD/ Solidworks/ CAXA/ Types etc.) |
| 18 | Cutting accuracy | ±0.5mm |
| 19 | Power Supply Voltage/Frequency | 220V 50HZ / 60HZ |
| 20 | Rated Power Supply | 1500W |
| 21 | Working Temperature | -10℃-60℃, Relative Humidity, 0-95%. |
Applications:
Machine Manufacturing, Armored Vehicles, Automotive Fabrication, Construction, Decorative Fencing, Job Shops, Structural Steel, Marine Fabrication, Oil Field Equipment, Sign Shops, Metal Fabrication, etc.
All kinds of metal materials such as steel, copper, aluminum and stainless steel can be processed. Applies to iron plate, aluminum plate, galvanized sheet, White Steel plate, Titanium plates, and so on like the sheet metal.

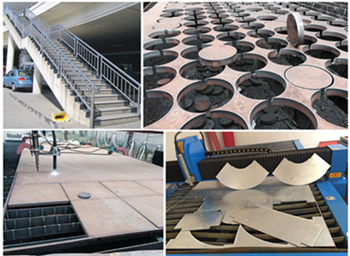

Cutting Samples:
Operating Steps :
